8′ ground rods cost about $11 apiece – 10′ if required in your area about $15 each. The grounding wire, assuming #4 bare copper wire, about $1.20/LF, 4 clamps at $5 ea – so assuming about 10′ run to each rod, then about $66-74 materials – say maybe $80-90 with markup.

What is a good grounding rod?

Galvanized steel, copper-bonded steel and stainless steel are the most common materials considered for grounding systems in most parts of the world. Galvanized steel rods are often the go-to material because they are cheap, allowed by the NEC and UL listed.

How do I know if my ground rod is bad?

Check the resistance reading on the meter. Your clamp-on ground tester will have a screen that will show you a numeric reading. The lower the number on the meter, the better your grounding rod is working. In general, a reading under 25 ohms means that your ground rod has a good connection to the earth.

Is a grounding rod necessary?

A fundamental component of safety and protection for your business and/or home’s electrical system is proper grounding. For this reason, one or more ground rods are required on your property by the National Electrical Code (NEC) and local building codes.

What is a grounding rod for?

Ground rods, also known as grounding electrodes, are used to connect the grounding system of electrical systems to earth ground. … Ground rods are very good conductors of electricity and allow any dangerous electricity to flow to ground, taking the danger away from you and the electrical panel.

Can copper pipe be used as a grounding rod?

For installations with a longer service life, copper-bonded ground rods are the best fit. For many years, the copper cold water pipe has served as the primary grounding electrode for commercial & residential grounding.

Can I use at post as a grounding rod?

No. Your grounding rods should be galvanized steel or copper. The t-posts will rust and they will be very difficult to get into the ground far enough. You want to put your grounding rod down around 6-8′ into the ground and leave less than 12″ sticking up above the ground.

How do you find a ground rod?

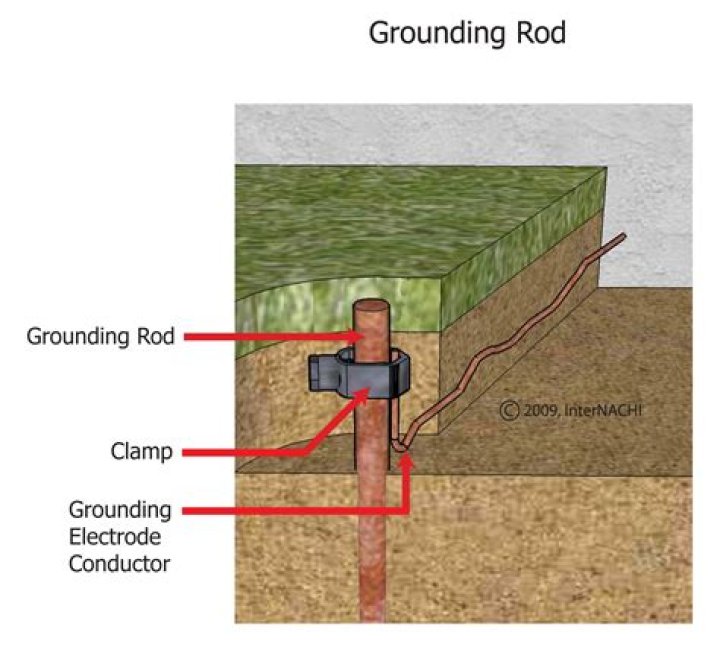

The Ground Rod is usually located very close to your main electrical service panel. The ground rod is often made of copper, or copper coated steel, approximately ½” in diameter or larger and 8–10 feet in length. It must be electrically tied to your main service panel to provide an approved ground connection.

How deep does a ground rod need to be for electric fence?

A general rule is to install a minimum of 3 feet of ground rod per joule of output capacity. A 15 joule fence charger will require a minimum of 45 feet of ground rod. These rods must be installed at least 10 feet apart from each other.

What happens if house is not properly grounded?

Risks of Improper Grounding It can be dangerous to live in a home that’s improperly grounded, or not grounded at all. The greatest risks come from fire and electrical shock that can result in serious injury or death, especially in areas like the kitchen and bathroom where water is present.

Article first time published on

How deep should a ground rod be driven?

In general, grounding rods put in vertically need to be about 8 feet deep into the soil, or, if in a very rocky area, about 2.5 feet deep when installed horizontally. In some areas, such as those with very sandy “soil” at the top layer, the rod may need to go deeper to be effective since it needs to connect with soil.

How do you check to see if your house is grounded?

Look at the outlets in your home. The first sign of proper grounding is whether you have two-prong outlets or three. A three-prong outlet has a narrow slot, a larger slot and a “U-shaped slot.” The U-shaped slot is the grounding component.

How far does ground rod need to be from panel?

Approximately 90 percent of all grounding electrode systems for structures are driven rods. The NEC requires all driven rods to be a minimum eight feet in the earth and for multiple connected rods a minimum spacing of six feet between rods.

How deep does a copper ground rod need to be?

According to regulations, a ground rod should be at least eight feet deep vertically into the ground. What this means is that one end of the ground rod should not be less than eight feet deep. An expert electrician can ensure that your ground rods are installed correctly.

Can I use rebar as a grounding rod?

Proper Grounding Rod In most cases, pipe or rebar can be used. The grounding rod needs to be made of galvanized steel and also needs to be at least four feet in length for best results.

Will electric fence work without ground rod?

Proper Grounding Rod Using copper rods will diminish the overall effectiveness of the electrical fence system. … In fact, the majority of electrical fence systems will actually require at least three grounding rods. These rods should be about 10 feet apart and should be placed at the start of the fence.

What happens if you don't ground an electric fence?

If It Isn’t Grounded, It Won’t Shock When an animal touches the electrically charged fence wire, the animal feels the electric current as the charge passes through the body. The charge then completes the circuit through the soil via the ground rod and then up the ground wire to the ground terminal charger.

Can I use 1/2 inch ground rod?

With regard to diameter, the Code allows for two ways a ground rod can meet the requirements: (1) It can be 0.625 or larger in diameter, or (2) it must be listed and not less than ½ inch (0.500).

Can you use a water pipe as a grounding rod?

Water pipes have been used extensively in the past as a grounding electrode. Water pipe connections are not testable and are unreliable due to the use of tar coatings and plastic fittings. … The NEC requires that at least one additional electrode be installed when using water metal pipes as an electrode.

Can you ground to galvanized steel?

UL-approved coatings include copper, zinc or stainless steel. Galvanized rods have a zinc coating thickness of 3.9 mils (. … Either coating is capable of safely conducting fault to ground.

Why is my electric fence clicking?

Clicking is part of normal fence operation when a charger releases energy that travels along the fence. … Almost all radio noise generated by electric fences is caused by a spark or arcing of the electrical current across fence hardware.

How do you test if ground is good?

Set the voltmeter to read ohms (resistance) and probe the battery’s negative stud and ground connection on the accessory (the ground terminal on an amp, for example). If you have a reading less than five ohms, the ground is okay.

Why are 2 ground rods required?

Suppose you drive the first ground rod for a system. If it has a ground resistance of 25 ohms or more, 250.56 of the 2005 NEC requires you to drive a second rod. … Ground rods spaced less than two rod-lengths apart will interfere with each other because their effective resistance areas will overlap (Fig.

How much does it cost to ground a house?

At a minimum, most grounding jobs involve replacing the outlet, and there are a lot of different varieties. Inexpensive three-prong outlets typically cost between $5 to $15 each, but something like a ground fault circuit interrupter receptacle (aka GFCI outlet) will cost $7 to $25 a pop.

What color is the grounding wire?

A grounded wire is required by the National Electrical Code to be white or gray in color on the customer side of the meter. Grounded wires on the utility side of the system do not generally have insulation.

Does ground wire have to be buried?

There is no minimum burial depth required for a grounding electrode conductor. … It is a good idea to bury an exposed grounding electrode conductor in order to keep it out of harm’s way, but there is nothing in the NEC requiring a certain burial depth for the grounding electrode conductor.

How do you know if a socket is earthed?

Insert the Negative wire in the Earthing of the Socket (Top single Hole). The Bulb must Glow with Full Brightness as before. If the Bulb does NOT Glow at all then there is NO Earthing / Grounding. If the Bulb Glows Dim, then it means the Earthing is Not Proper.

Can a ground rod be installed in concrete?

The concrete-encased electrode can be bare, zinc-galvanized, or other steel reinforcing bars or rods of not less than ½ inch in diameter coated in electrically conductive material. … A concrete-encased electrode can also be constructed using 20 feet or more of bare copper conductor not smaller than 4 AWG.
